Beamless Boat Lifts with a Low-Profile Modern Design

The Most Refined Boat Lift Design for Modern Waterfront Homes

Neptune Beamless Boat Lifts combine industrial strength engineering with a clean, modern dockside appearance. By eliminating the traditional top beam structure found on conventional boat lifts, beamless systems create a sleek, unobstructed waterfront profile while maintaining powerful lifting performance.

These lifts are designed for homeowners who want their dock system to complement the architectural style of their waterfront property without sacrificing durability or lifting capability.

Request a Lift Consultation

Low-Profile 4-Post Boat Lifts for Clean Waterfront Designs

A Cleaner Waterfront Profile

Neptune Beamless Boat Lifts are designed for waterfront owners who want the strength of a serious boat lift without the visual bulk of traditional overhead beams. By removing the top carrier beam and integrating the lift system directly into the piling-mounted framework, a beamless lift creates a cleaner, lower-profile appearance from both the dock and the water.

For modern waterfront homes, luxury docks, canal properties, and high-end marina installations, this design offers a more refined look while still delivering the lifting capacity and durability expected from Neptune Boat Lifts.

Neptune Beamless Boat Lifts are available in multiple configurations with capacities up to 30,000 lbs., depending on vessel size, beam, piling layout, and selected drive system.

They are especially popular for:

  • Contemporary waterfront homes

  • Canal homes with clean dock designs

  • High-end marina installations

  • Properties with architectural dock layouts

  • Homeowners seeking a low-profile lift system

By eliminating the upper beam structure, the lift blends naturally into the dock environment.

Strength Without the Overhead Beam

Although beamless lifts are known for their clean appearance, they are still engineered for serious lifting performance. Neptune beamless systems are built to handle substantial vessel weight while maintaining the low-profile design that makes the system attractive.

Neptune beamless systems feature:

  • All-welded aluminum structural construction

  • Marine-duty stainless steel drive motors

  • Solid billet aluminum grooved winders

  • Long-life solid billet bearings

  • Aluminum or carpeted bunk systems depending on capacity

The purpose of the design is simple: preserve the clean look of the dock without sacrificing strength, stability, or long-term performance in a marine environment.

A Cleaner Alternative to Traditional 4-Post Lifts

Traditional 4-post boat lifts use overhead top beams to support the lifting structure. While effective, those beams can create a heavier visual profile along the dock. For homeowners who care about the appearance of their waterfront, that overhead structure can distract from the clean lines of a custom dock, seawall, or luxury outdoor living space.

A Neptune Beamless Lift removes that upper beam structure. Independent drive units are mounted directly to the pilings, allowing the lift to maintain strong lifting performance while blending more naturally into the dock environment.

The result is a low-profile boat lift that looks cleaner, feels less intrusive, and better complements contemporary waterfront architecture.

Designed for Saltwater Durability

South Florida’s saltwater environment is hard on marine equipment. Salt spray, humidity, sun exposure, tidal movement, and daily use can all accelerate wear on ordinary lift systems. Neptune Beamless Boat Lifts are built with corrosion-resistant materials and durable components designed for these conditions.

Key components include:

  • All-welded aluminum structural construction

  • Marine-duty stainless steel drive motors

  • Solid billet aluminum grooved winders

  • Long-life solid billet bearings

  • Aluminum or carpeted bunk systems depending on capacity

For owners who want additional protection, Neptune’s optional SEArmor corrosion-resistant package can be added. SEArmor is designed to help protect lift components from saltwater exposure, extend service life, and reduce long-term maintenance concerns.

Direct Drive, G3 High Speed, and G6 SuperFast Options

Neptune Beamless Boat Lifts are available with multiple direct drive configurations, allowing the lift to be matched to the owner’s desired speed, performance level, and vessel requirements.

Direct Drive provides reliable everyday lifting performance using Neptune’s direct drive double worm gearing system. It is a strong choice for owners who want dependable operation and a clean, efficient lift design.

G3 High Speed offers faster lift operation for owners who want quicker access to the water. It is well suited for boaters who use their vessel frequently and want to reduce lift wait time.

G6 SuperFast is Neptune’s fastest beamless lift configuration, engineered for maximum lifting performance. For owners who prioritize speed and convenience, G6 provides the highest-performance option in the beamless lineup.

Drive options include:

Direct Drive

G3 High-Speed Drive

G6 SuperFast Drive

Reliable lifting performance for everyday applications using Neptune’s double worm gearing system.

Faster lifting speeds designed for boat owners who want quicker lift operation.

Neptune’s fastest lift configuration, engineered with patented G6 gearing technology for maximum lifting performance.

Neptune’s fastest lift configuration, engineered with patented G6 gearing technology for maximum lifting performance.

Technical Specifications

Direct Drive Beamless 4-Motor Specifications

Size Horse Power Volt and Amperage Cable Size Winding Area Vertical Travel Speed Max. Beam Lifter Dimensions Bunks Min. Pile Size
8,000 lbs. (4) 3/4 HP Stainless Steel 240V/30A 5/16" Stainless Steel 8" x 3 Grooved Winders 11' 55" 9' 0" 6" I-Beam 12'0" Aluminum Bunks (4) 10" Driven
10,000 lbs. (4) 1 HP Stainless Steel 240V/30A 5/16" Stainless Steel 8" x 3 Grooved Winders 11' 55" 9' 6" 8" I-Beam 12'0" Aluminum Bunks (4) 10" Driven
13,000 lbs. (4) 3/4 HP Stainless Steel 240V/30A 5/16" Stainless Steel 11" x 3 Grooved Winders 10' 33" 9' 6" 8" I-Beam 12'0" Aluminum Bunks (4) 10" Driven
16,000 lbs. (4) 3/4 HP Stainless Steel 240V/30A 5/16" Stainless Steel 11" x 3 Grooved Winders 10' 33" 11' 0" 10" I-Beam 14'0" Aluminum Bunks (4) 10" Driven
20,000 lbs. (4) 1 HP Stainless Steel 240V/30A 3/8" Stainless Steel 13" x 2.5 Grooved Winders 11' 33" 11' 0" 10" I-Beam 3" x 10" x 14' Carpeted Wood Bunks (4) 12" Driven
24,000 lbs. (4) 3/4 HP Stainless Steel 240V/30A 5/16" Stainless Steel 18" x 2.5 Grooved Winders 11' 19" 12' 0" 10" I-Beam 3" x 12" x 18' Carpeted Wood Bunks (4) 12" Driven
30,000 lbs. (4) 1 HP Stainless Steel 240V/30A 3/8" Stainless Steel 18" x 2.5 Grooved Winders 11' 19" 13' 0" 12" I-Beam 3" x 12" x 20' Carpeted Wood Bunks (4) 12" Driven

Because vessel weight can vary significantly once fuel, engines, batteries, gear, and equipment are included, a Neptune dealer should evaluate the full loaded weight before recommending a beamless lift configuration. Final specifications depend on vessel weight, beam, piling layout, water depth, electrical requirements, bunk configuration, selected drive system, and site conditions.

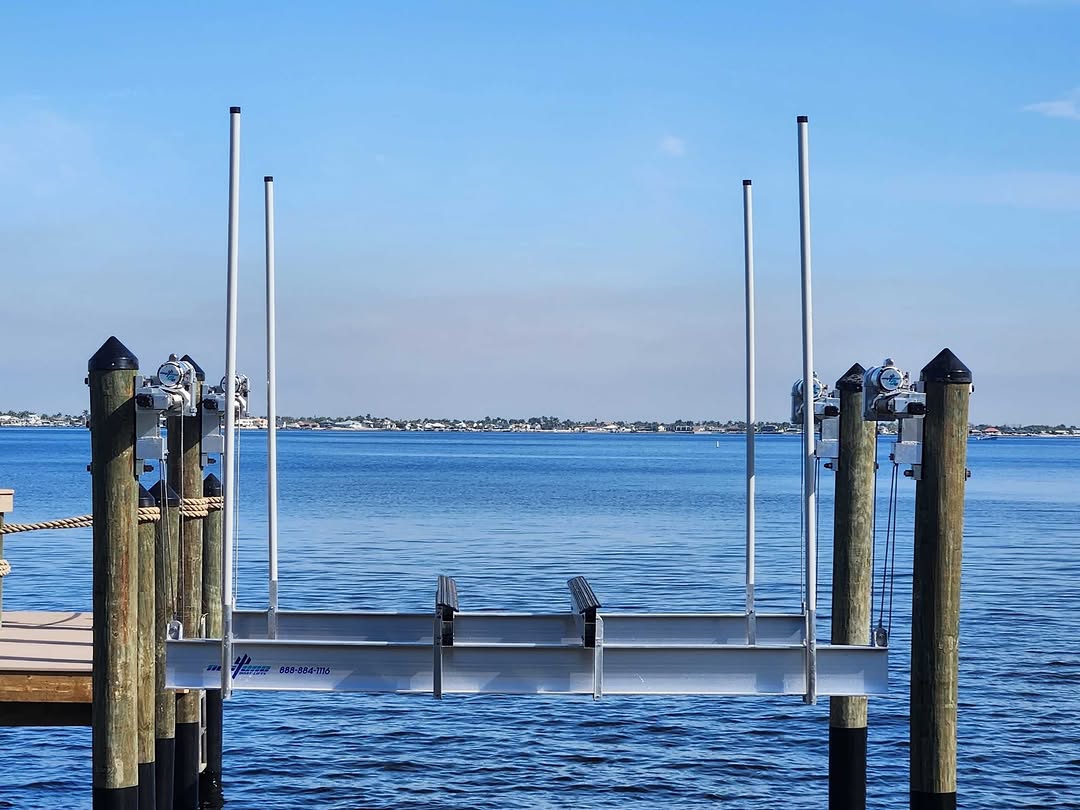

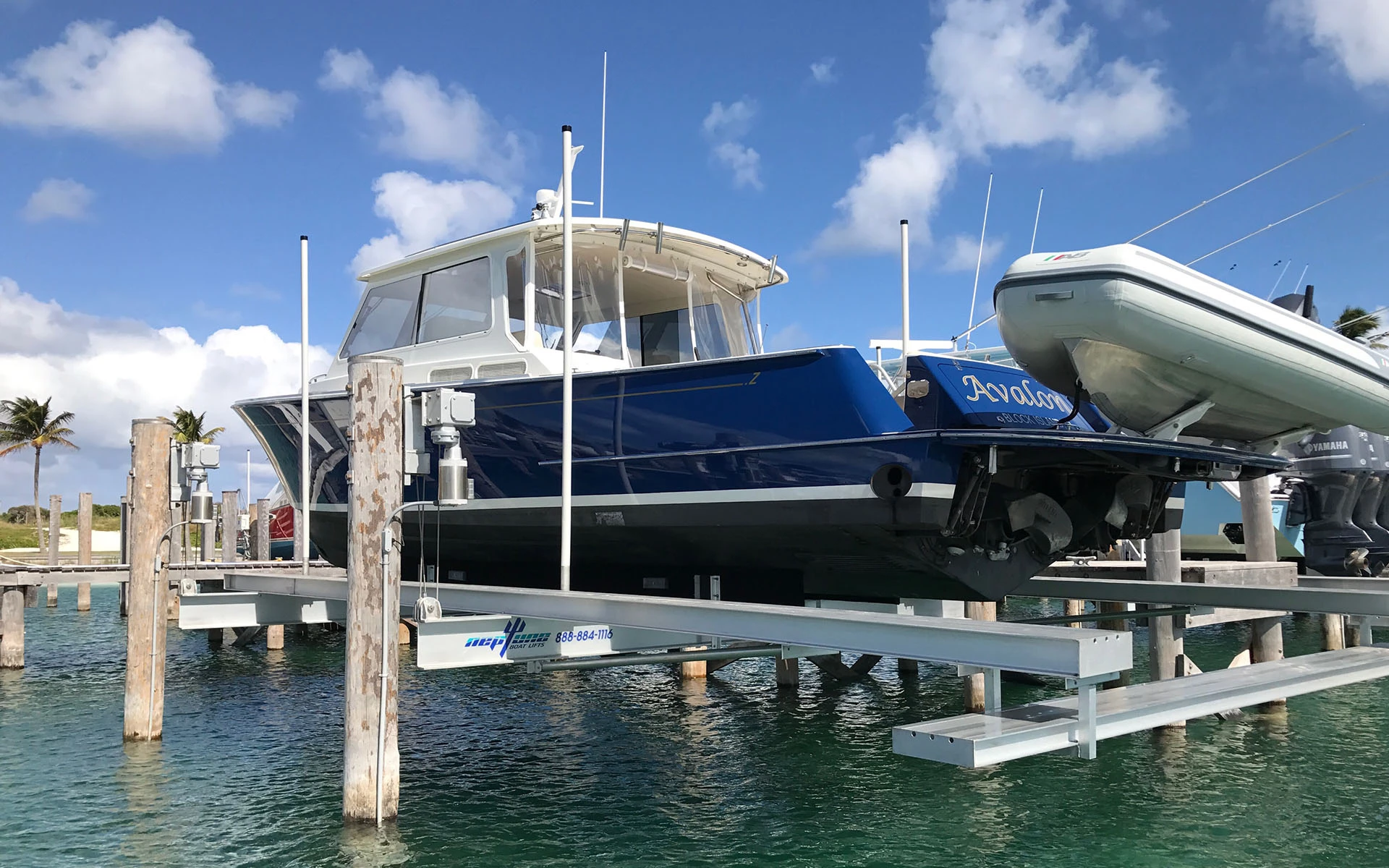

Neptune Beamless Lift Installations

Product Resources

Download technical information and planning resources for Neptune lift systems.

Available downloads include:

Beamless Lift Specification Sheet  - Direct Drive

Beamless Lift Specification Sheet  - G3

Beamless Lift Specification Sheet  - G6

Neptune Lift Planning Guide

Installation Overview Guide

Warranty Information

Learn More:

Beamless lifts are commonly used for a wide range of recreational and offshore boats. They are especially popular with owners who want strong lifting capacity but prefer a cleaner waterfront profile than a traditional overhead-beam lift.

Common applications include center console boats, offshore fishing boats, bay boats, dual console boats, and express cruisers. Depending on configuration, Neptune beamless lifts can support vessels up to 30,000 lbs.

For larger yachts or vessels that exceed the practical range of a beamless system, Neptune also offers 8-Post Yacht Lifts and Elevator Yacht Lifts

A beamless lift depends on proper piling layout, vessel measurements, water depth, and dock configuration. Because the drive units mount directly to the pilings, the installation must be planned carefully to ensure the lift has the structural support, clearance, and alignment needed for safe operation.

Important installation considerations include vessel weight, beam width, piling size and condition, dock layout, electrical service, tidal range, and water depth. Bunk configuration is also important, since the lift must support the hull properly every time the vessel is raised.

A Neptune dealer or lift specialist can evaluate the boat and property together to determine whether a beamless lift is the right fit.

Beamless lifts are designed for marine environments, but regular maintenance is still essential. Owners should inspect cables, winders, pulleys, bearings, motors, bunks, and structural components regularly. Any signs of wear, corrosion, fraying, loose hardware, or damage should be addressed promptly.

As with any boat lift, the vessel should be positioned correctly before lifting, and the rated capacity should never be exceeded. The lift should not be operated with people in the boat, on the lift, or under the vessel. Power should be turned off when the lift is not in use.

Routine rinsing, inspection, lubrication where required, and proper operation help protect the lift and support long-term performance in saltwater environments.

Neptune Boat Lifts provides limited warranty coverage for qualifying products and components. Warranty coverage may vary by product and component, so owners should review the full warranty documentation for complete terms, exclusions, and maintenance requirements.

In general, Neptune warranty materials state that structural aluminum and stainless steel members are covered for 10 years, gearboxes for 5 years, motors for 2 years, and other components for 1 year. Routine maintenance and periodic service remain the owner’s responsibility.

A beamless lift may be the right choice if you want the strength and function of a 4-post lift with a cleaner, lower-profile appearance. It is especially well suited for modern waterfront homes, high-end dock designs, canal properties, and owners who want their boat lift to blend naturally into the property.

The best recommendation starts with the vessel and the dock layout together. A Neptune dealer can review your boat’s loaded weight, beam, hull design, piling layout, dock configuration, water depth, and electrical requirements to determine whether a beamless lift is the right solution.

Depending on your dock configuration, you may also want to explore other Neptune lift systems.

4-Post Boat Lifts

Elevator Boat Lifts

Elevator Yacht Lifts

8-Post Yacht Lifts

Each lift system is engineered for different vessel sizes and waterfront environments.

Is a Beamless Boat Lift Right for Your Waterfront?

A beamless lift may be the right choice if you want the strength and function of a 4-post lift with a cleaner, lower-profile appearance. It is especially well suited for modern waterfront homes, high-end dock designs, canal properties, and owners who want their boat lift to blend naturally into the property.

The best recommendation starts with the vessel and the dock layout together. A Neptune dealer can review your boat’s loaded weight, beam, hull design, piling layout, dock configuration, water depth, and electrical requirements to determine whether a beamless lift is the right solution.

Talk to a Neptune Dealer About Your Beamless Boat Lift

Frequently Asked Questions

A beamless boat lift is a low-profile 4-post lift that eliminates the large overhead top beam found on traditional 4-post lift systems. Instead, the lift uses independent drive units mounted directly to the pilings, creating a cleaner waterfront appearance while maintaining strong lifting performance.

A traditional 4-post lift uses overhead carrier beams as part of the lifting structure. A beamless lift removes those overhead beams, giving the dock and waterfront a cleaner, more open look. This makes beamless lifts popular for luxury homes, modern docks, and properties where appearance is a priority.

Neptune Beamless Boat Lifts are available in configurations up to 30,000 lbs., depending on vessel size, beam, piling layout, drive system, and installation requirements

Yes. Neptune Beamless Boat Lifts are built for coastal and saltwater environments using aluminum and stainless-steel construction, stainless steel motors, solid billet grooved winders, and corrosion-resistant components.

Yes. Beamless lifts are often chosen for luxury waterfront homes because they provide strong lifting capability while preserving a clean, low-profile dock appearance.

Depending on the model and capacity, Neptune Beamless Boat Lifts may be available with Direct Drive, G3 High Speed, and G6 SuperFast drive configurations.

Beamless lifts are commonly used for center console boats, offshore fishing boats, bay boats, dual console boats, express cruisers, and other recreational vessels within the appropriate weight and beam range.

Beamless lifts require proper piling support, spacing, alignment, and structural conditions. A Neptune dealer or lift specialist should evaluate the vessel and dock layout before recommending a beamless lift.
