Why Choose an Elevator Yacht Lift
The Ideal Lift Solution for Large Boats on Seawalls
Many luxury waterfront properties in Florida rely on seawalls instead of pilings. When space is limited or piling installation is not feasible, elevator yacht lifts provide a reliable alternative for storing large vessels safely out of the water.
Whether installed along the Intracoastal Waterway, canal homes, or luxury waterfront estates, Neptune systems provide secure, smooth lifting for larger vessels.

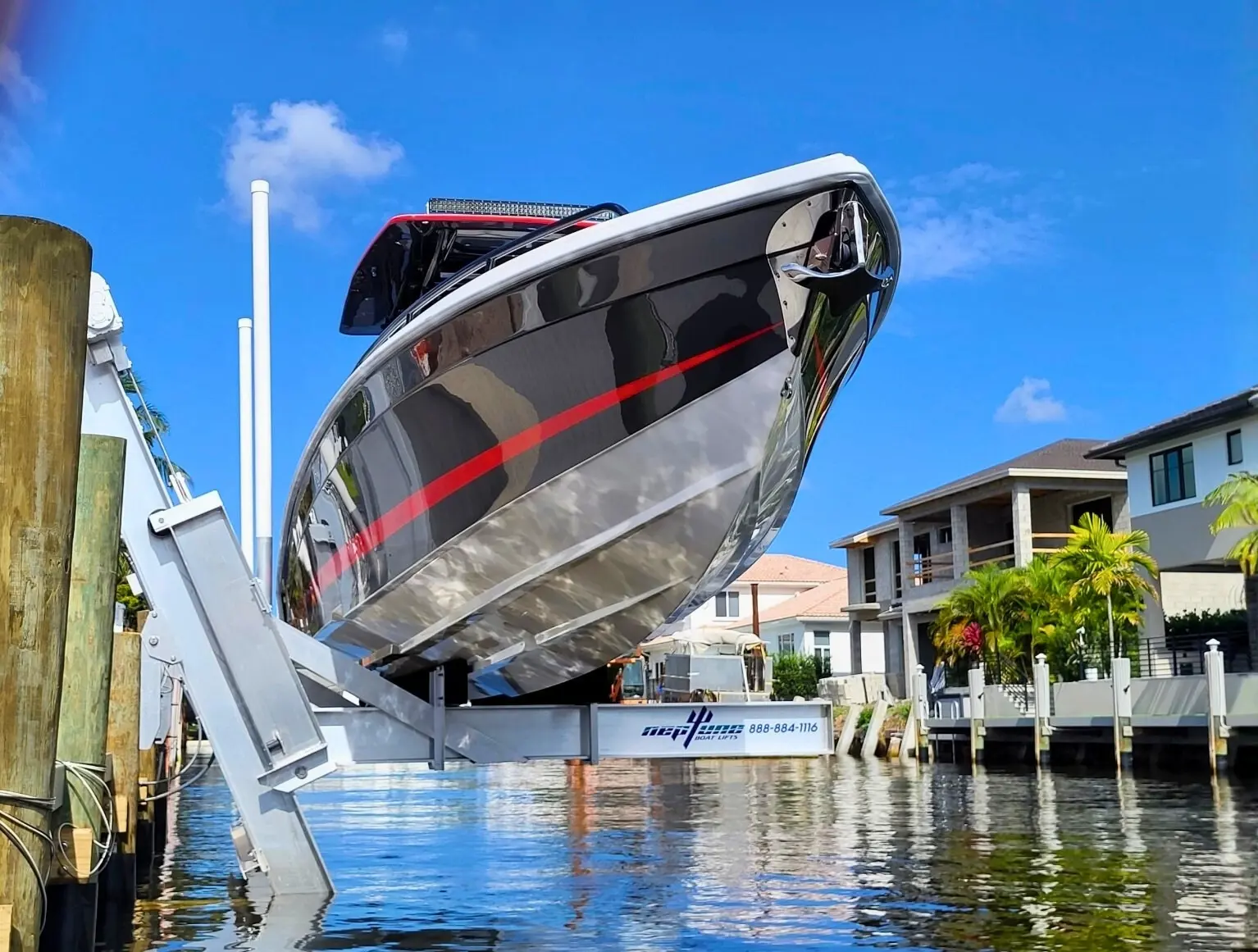

By mounting the lift structure to seawall-supported beams, the system allows large boats to be lifted without occupying the wide footprint required by traditional cradle lifts.
This design is especially valuable for canal homes and Intracoastal properties where dock space is limited.
Typical Capacity Range: 20,000 lb – 72,000+ lb custom systems
Designed For: Yachts • Large Offshore Boats • Luxury Waterfront Homes
Custom Engineered Lift Systems
Neptune elevator yacht lifts are engineered to safely lift large vessels including offshore fishing boats and luxury motor yachts. Unlike standard boat lifts, yacht elevator lifts often require custom engineering to match the structure of the dock, seawall, and vessel.
Neptune designs each system to match the installation site.
Factors considered during system design include:
Vessel weight and beam
Dock configuration
Seawall construction
Water depth and tidal movement
Available canal or slip width
This engineered approach ensures proper load distribution and long-term durability. Each lift system is engineered based on vessel weight, hull design, and waterfront configuration.
Built for Harsh Saltwater Environments
South Florida’s marine environment is one of the most aggressive operating conditions for marine equipment. Neptune elevator yacht lifts are designed to withstand these conditions using corrosion-resistant materials and durable structural components.
Standard construction features include:
Marine-grade aluminum structural framing
Stainless steel cables and hardware
Aluminum pulleys with stainless axles
Corrosion-resistant drive systems
High-Speed Direct Drive Options
Neptune elevator yacht lifts are available with multiple drive configurations designed to provide smooth lifting performance.
Drive options include:
Direct Drive | G3 High-Speed Drive | G6 SuperFast Drive |
Dependable lifting performance for everyday use. | Faster lift speeds for larger vessels. | Maximum lifting performance designed for large yacht applications. |
Direct drive systems eliminate belts and chains, delivering smoother operation and reduced maintenance over time.
Technical Specifications
Select a drive system to view specifications. (Specs shown for the 4,500 lb model.)
Direct Drive Specifications
| Lift Capacity | Top Carrier | Lift Beam | Motor Power | Lift Speed | Electrical | Cable | Travel | Bunks | Min Piling |
|---|---|---|---|---|---|---|---|---|---|
| 4,500 lbs | 5" x 12' 6" Channel | 6" x 11'0" I-Beam | (2) 3/4 HP | 46"/min | 120V / 30A or 240V / 20A |
5/16" x 20' | 12'+ | 3" x 8" x 12' Carpeted | (4) 8" Pilings |
| 7,000 lbs | 5" x 12' 6" Channel | 6" x 12'0" I-Beam | (2) 1 HP | 46"/min | 120V / 30A or 240V / 20A |
5/16" x 20' | 12'+ | 3" x 8" x 12' Carpeted | (4) 8" Pilings |
| 10,000 lbs | 6" x 12' 6" Channel | 8" x 12'6" I-Beam | (2) 3/4 HP | 23"/min | 120V / 30A or 240V / 20A |
5/16" x 32' | 12' | 3" x 8" x 12' Carpeted | (4) 8" Pilings |
| 13,000 lbs | 7" x 12' 6" Channel | 8" x 12'6" I-Beam | (2) 1 HP | 23"/min | 120V / 30A or 240V / 20A |
5/16" x 32' | 12' | 3" x 10" x 12' Carpeted | (4) 8" Pilings |
| 16,000 lbs | 7" x 12' 6" Channel | 10" x 14' I-Beam | (2) 1 HP | 23"/min | 240V / 20A | 5/16" x 32' | 12' | 3" x 10" x 14' Carpeted | (4) 10" Pilings |
| 20,000 lbs | 8" x 12' 6" Channel | 10" x 14' I-Beam | (2) 1 HP | 15"/min | 240V / 20A | 5/16" x 48' | 12' | 3" x 10" x 14' Carpeted | (4) 10" Pilings |
| 24,000 lbs | 8" x 15'0" Channel | 12' x 15' I-Beam | (2) 1 HP | 15"/min | 240V / 20A | 5/16" x 48' | 12' | 3" x 12" x 18' Carpeted | (4) 10" Pilings |
| 30,000 lbs (w/remote) | 8" x 15'0" Channel | 12' x 16' I-Beam | (4) 1 HP | 22"/min | 240V / 30A | 3/8" x 50' | 12' | 3" x 12" x 20' Carpeted | (4) 10" Pilings |
Specifications may vary based on installation conditions and optional upgrades.
G3 High-Speed Specifications
| Lift Capacity | Top Carrier | Lift Beam | Motor Power | Lift Speed | Electrical | Cable | Travel | Bunks | Min Piling |
|---|---|---|---|---|---|---|---|---|---|
| 4,500 lbs | 5" x 12' 6" Channel | 6" x 11'0" I-Beam | (2) 1 HP | 80"/min | 240V / 20A | 5/16" x 20' | 12'+ | 3" x 8" x 12' Carpeted | (4) 8" Pilings |
| 7,000 lbs | 5" x 12' 6" Channel | 6" x 12'0" I-Beam | (2) 2 HP | 80"/min | 240V / 30A | 5/16" x 20' | 12'+ | 3" x 8" x 12' Carpeted | (4) 8" Pilings |
| 10,000 lbs | 6" x 12' 6" Channel | 8" x 12'6" I-Beam | (2) 1 1/2 HP | 40"/min | 240V / 30A | 5/16" x 32' | 12' | 3" x 8" x 12' Carpeted | (4) 8" Pilings |
| 13,000 lbs | 7" x 12' 6" Channel | 8" x 12'6" I-Beam | (2) 1 1/2 HP | 40"/min | 240V / 30A | 5/16" x 32' | 12' | 3" x 10" x 12' Carpeted | (4) 8" Pilings |
| 16,000 lbs | 7" x 12' 6" Channel | 10" x 14' I-Beam | (2) 2 HP | 40"/min | 240V / 30A | 5/16" x 32' | 12' | 3" x 10" x 14' Carpeted | (4) 10" Pilings |
| 20,000 lbs | 8" x 12' 6" Channel | 10" x 14' I-Beam | (2) 2 HP | 26"/min | 240V / 30A | 5/16" x 48' | 12' | 3" x 10" x 14' Carpeted | (4) 10" Pilings |
| 24,000 lbs | 8" x 15'0" Channel | 12' x 15' I-Beam | (2) 2 HP | 26"/min | 240V / 30A | 5/16" x 48' | 12' | 3" x 12" x 18' Carpeted | (4) 10" Pilings |
| 30,000 lbs (w/remote) | 8" x 15'0" Channel | 12' x 16' I-Beam | (4) 2 HP | 37"/min | 240V / 60A | 3/8" x 50' | 12' | 3" x 12" x 20' Carpeted | (4) 12" Pilings |
Specifications may vary based on installation conditions and optional upgrades.
G6 SuperFast Specifications
| Lift Capacity | Top Carrier | Lift Beam | Motor Power | Lift Speed | Electrical | Cable | Travel | Bunks | Min Piling |
|---|---|---|---|---|---|---|---|---|---|
| 4,500 lbs | 5" x 12' 6" Channel | 6" x 11'0" I-Beam | (2) 1 HP | 172"/min | 240V / 30A | 5/16" x 20' | 12'+ | 3" x 8" x 12' Carpeted | (4) 8" Pilings |
| 7,000 lbs | 5" x 12' 6" Channel | 6" x 12'0" I-Beam | (2) 2 HP | 172"/min | 240V / 30A | 5/16" x 20' | 12'+ | 3" x 8" x 12' Carpeted | (4) 8" Pilings |
| 10,000 lbs | 6" x 12' 6" Channel | 8" x 12'6" I-Beam | (2) 1 HP | 86"/min | 240V / 30A | 5/16" x 32' | 12' | 3" x 8" x 12' Carpeted | (4) 8" Pilings |
| 13,000 lbs | 7" x 12' 6" Channel | 8" x 12'6" I-Beam | (2) 2 HP | 86"/min | 240V / 30A | 5/16" x 32' | 12' | 3" x 10" x 12' Carpeted | (4) 8" Pilings |
| 16,000 lbs | 7" x 12' 6" Channel | 10" x 14' I-Beam | (2) 2 HP | 86"/min | 240V / 30A | 5/16" x 32' | 12' | 3" x 10" x 14' Carpeted | (4) 10" Pilings |
| 20,000 lbs | 8" x 12' 6" Channel | 10" x 14' I-Beam | (2) 2 HP | 57"/min | 240V / 30A | 5/16" x 48' | 12' | 3" x 10" x 14' Carpeted | (4) 10" Pilings |
| 24,000 lbs | 8" x 15'0" Channel | 12' x 15' I-Beam | (2) 2 HP | 57"/min | 240V / 30A | 5/16" x 48' | 12' | 3" x 12" x 18' Carpeted | (4) 10" Pilings |
| 30,000 lbs (w/remote) | 8" x 15'0" Channel | 12' x 16' I-Beam | (4) 2 HP | 82"/min | 240V / 60A | 3/8" x 50' | 12' | 3" x 12" x 20' Carpeted | (4) 12" Pilings |
Specifications may vary based on installation conditions and optional upgrades.

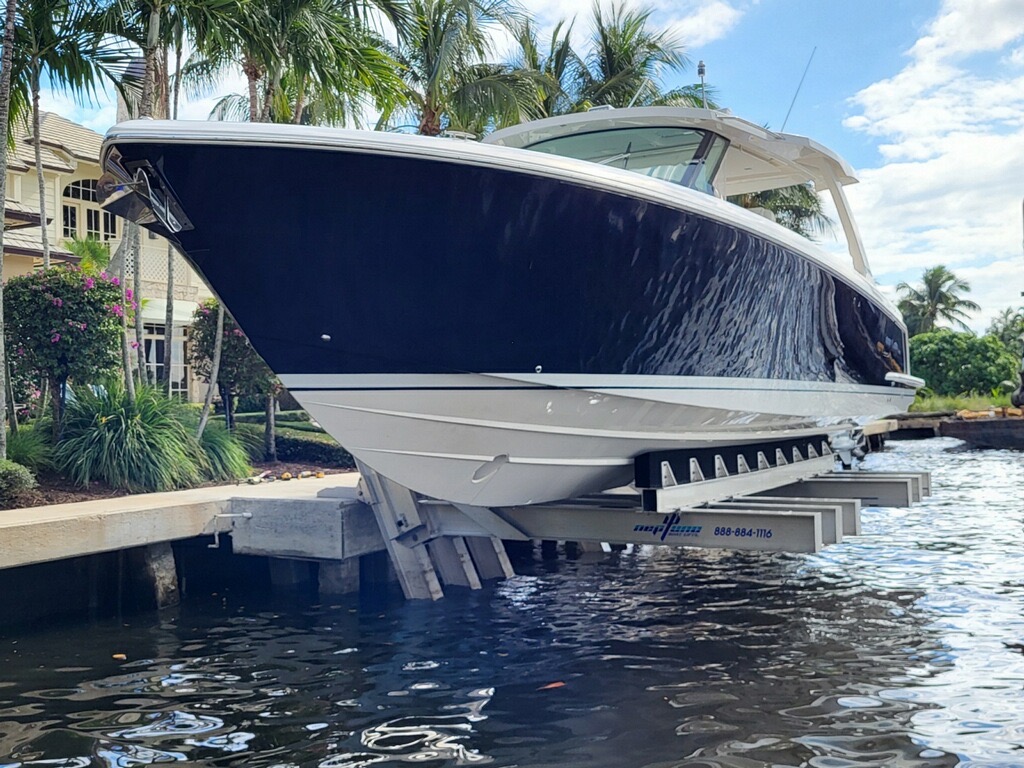

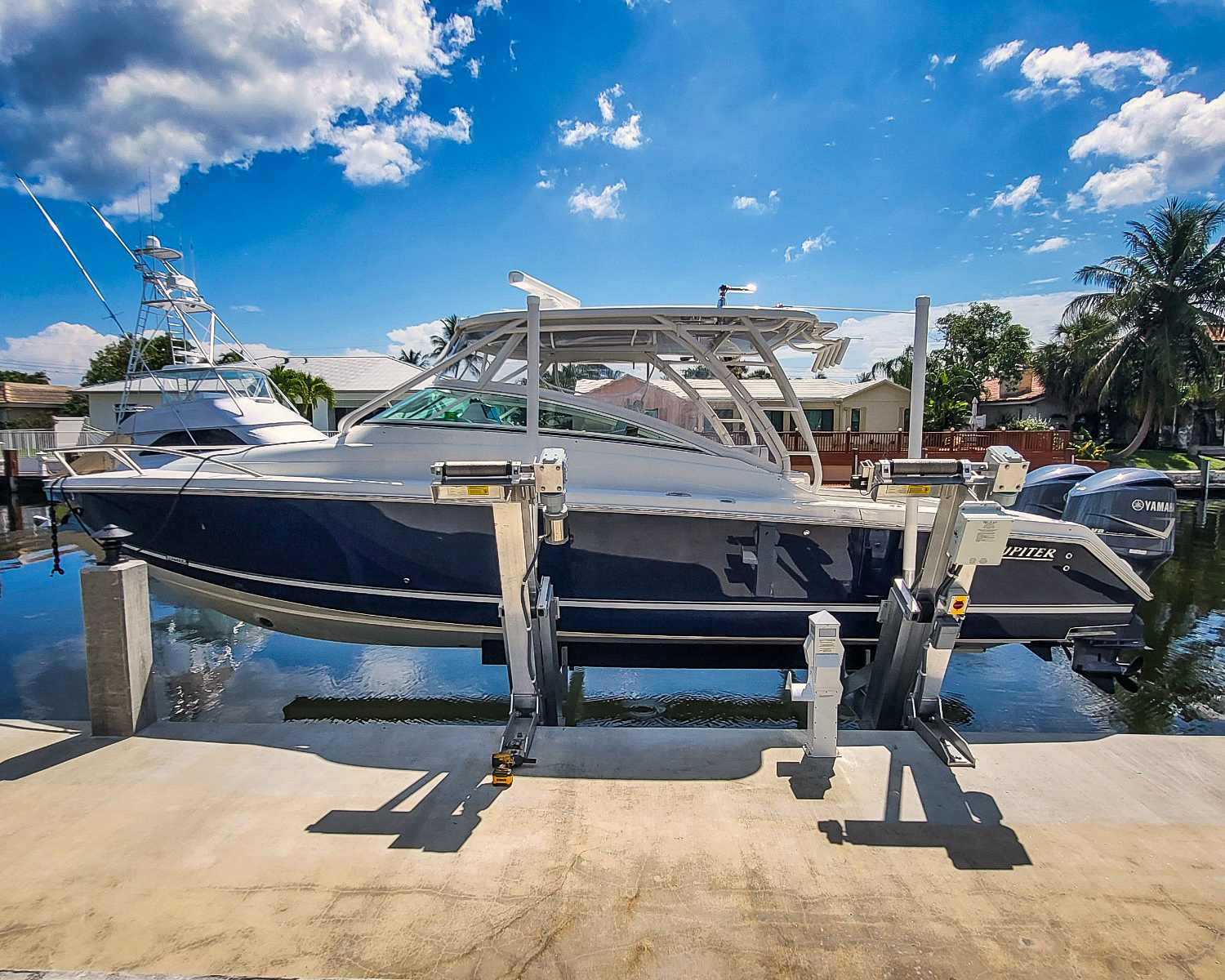

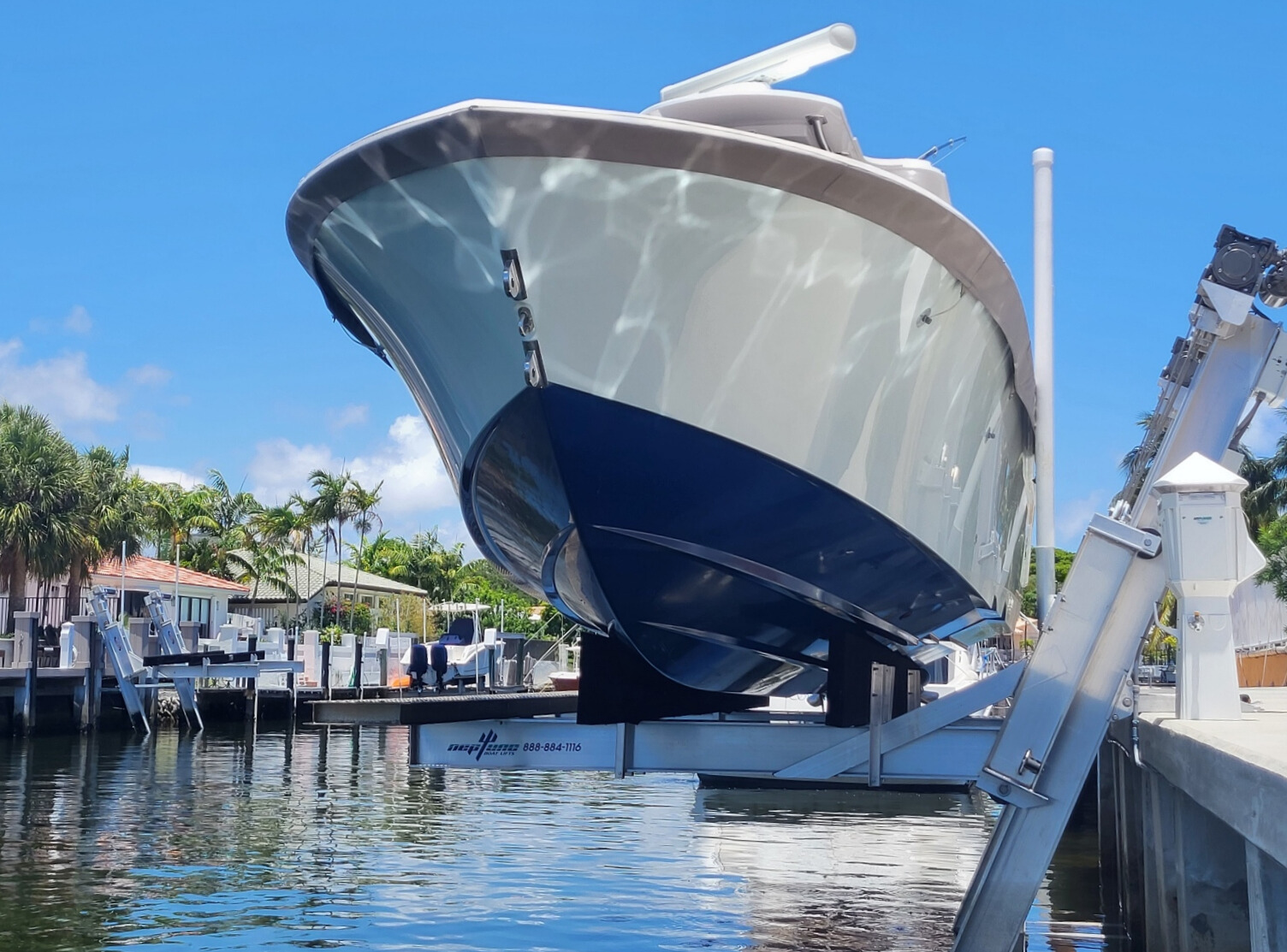

GALLARY
Product Resources
Download technical information and planning resources for Neptune lift systems.
Available downloads include:
Elevator Yacht Lift Specification Sheet - Direct Drive
Elevator Yacht Lift Specification Sheet - G3
Elevator Yacht Lift Specification Sheet - G6
Neptune Lift Planning Guide
Installation Overview Guide
Warranty Information
Related Lift Systems
Depending on your dock configuration, you may also want to explore other Neptune lift systems.
Each lift system is engineered for different vessel sizes and waterfront environments.
Elevator Yacht Lift
Neptune elevator yacht lifts are installed throughout South Florida’s coastal communities.
Common installation environments include:
Intracoastal waterfront homes
Florida canal properties
Seawall docks
Luxury waterfront estates
Limited-width marina slip
FAQ SECTION
What is an elevator yacht lift?
An elevator yacht lift is a seawall-mounted lifting system designed for large vessels where piling-mounted lifts are not practical.
How much weight can an elevator yacht lift handle?
Neptune elevator yacht lifts typically support vessels from 20,000 lbs to 72,000+ lbs, depending on engineering requirements.
Are elevator yacht lifts good for canal homes?
Yes. Elevator lifts are commonly used in canal homes where space is limited or where pilings cannot be installed.
Do elevator yacht lifts work in saltwater?
Yes. Neptune yacht lifts are built specifically for coastal saltwater environments using corrosion-resistant materials.
How do I know if my property can support a yacht lift?
A Neptune dealer or lift specialist will evaluate the seawall structure, dock layout, and vessel specifications before recommending a lift system.
