4-Post Boat Lifts

The Proven Coastal Standard for Piling-Mounted Docks

Neptune 4-Post Boat Lifts are engineered for open slips, canal homes, private docks, and marina installations where four pilings are available to support the lift structure.

Built with marine-grade aluminum, stainless-steel components, and multiple direct-drive options, Neptune 4-post lifts deliver dependable performance for boat owners who need strength, speed, and long-term reliability in saltwater environments.

Request a Custom Lift Consultation
Download Product Brochure

WHAT IS A 4-POST BOAT LIFT?

A Stable, Proven Lift System for Open Slips

A 4-post boat lift raises your vessel vertically between four pilings using a cradle, cable, and drive system. This is one of the most widely used lift configurations for residential docks, canal homes, and marina slips because it provides stable support, straightforward operation, and strong lifting performance.

A 4-post lift is typically the right choice when your dock or slip has pilings positioned around the boat, allowing the vessel to be lifted straight up and stored safely above the waterline.

Common applications include:

  • Waterfront homes along Florida canals

  • Intracoastal waterway properties

  • Private marina slips

  • Open-water dock installations

Designed for Saltwater Environments

Built for Florida’s Coastal Conditions

Saltwater, humidity, tides, sun, and daily use put constant stress on marine equipment. Neptune 4-Post Boat Lifts are engineered for these demanding waterfront conditions with durable materials, corrosion-conscious components, and heavy-duty construction.

Built with premium marine materials

Neptune 4-post lifts use aluminum and stainless-steel construction designed for long-term performance in saltwater environments. Marine-grade 6061-T6 aluminum structural framing provides strength without the corrosion concerns of untreated steel.

Direct-drive performance options

Choose from multiple drive systems depending on your speed and performance needs:

  • Standard Direct Drive for dependable everyday lifting

  • G3 High-Speed Direct Drive for faster operation

  • G6 SuperFast Direct Drive for maximum lifting speed

Invest in a Neptune Four-Post Boat Lift today and enjoy the perfect combination of American craftsmanship, smart technology, and outstanding durability. Give your boat the protection it deserves with the most reliable lift on the market.

HIGH-SPEED DIRECT DRIVE PERFORMANCE

Faster Lifting. Smoother Operation. Fewer Maintenance Points.

Neptune offers multiple direct-drive systems designed to improve lifting speed, simplify operation, and reduce maintenance compared with belt- or chain-driven configurations.

Direct-drive systems eliminate belts and chains, helping create smoother, more efficient lifting performance. For boat owners who use their boats often, faster lift operation can make launching and storing the vessel easier every time they return to the dock.

Available drive options

Standard Direct Drive: Dependable lifting performance for everyday use.

G3 High-Speed Direct Drive: Increased lift speed for boaters who want faster operation.

G6 SuperFast Direct Drive: Neptune’s highest-performance drive option for maximum lifting speed.

Technical Specifications

Neptune 4-Post Boat Lifts are available in multiple capacity and drive configurations. Use the specifications below as a planning reference. Final lift design may vary based on vessel weight, beam, hull shape, piling conditions, water depth, electrical requirements, and optional upgrades. Specs shown should be confirmed with Neptune or an authorized dealer before final selection or installation. Select a drive system to view specifications.

Direct Drive Specifications

Lift Capacity Top Carrier Lift Beam Motor Power Lift Speed Electrical Cable Travel Bunks Min Piling
4,500 lbs5" x 12' 6" Channel6" x 11'0" I-Beam (2) 3/4 HP46"/min120V / 30A
or
240V / 20A		 5/16" x 20'12'+3" x 8" x 12' Carpeted(4) 8" Pilings
7,000 lbs5" x 12' 6" Channel6" x 12'0" I-Beam (2) 1 HP46"/min120V / 30A
or
240V / 20A		 5/16" x 20'12'+3" x 8" x 12' Carpeted(4) 8" Pilings
10,000 lbs6" x 12' 6" Channel8" x 12'6" I-Beam (2) 3/4 HP23"/min120V / 30A
or
240V / 20A		 5/16" x 32'12'3" x 8" x 12' Carpeted(4) 8" Pilings
13,000 lbs7" x 12' 6" Channel8" x 12'6" I-Beam (2) 1 HP23"/min120V / 30A
or
240V / 20A		 5/16" x 32'12'3" x 10" x 12' Carpeted(4) 8" Pilings
16,000 lbs7" x 12' 6" Channel10" x 14' I-Beam (2) 1 HP23"/min240V / 20A 5/16" x 32'12'3" x 10" x 14' Carpeted(4) 10" Pilings
20,000 lbs8" x 12' 6" Channel10" x 14' I-Beam (2) 1 HP15"/min240V / 20A 5/16" x 48'12'3" x 10" x 14' Carpeted(4) 10" Pilings
24,000 lbs8" x 15'0" Channel12' x 15' I-Beam (2) 1 HP15"/min240V / 20A 5/16" x 48'12'3" x 12" x 18' Carpeted(4) 10" Pilings
30,000 lbs (w/remote)8" x 15'0" Channel12' x 16' I-Beam (4) 1 HP22"/min240V / 30A 3/8" x 50'12'3" x 12" x 20' Carpeted(4) 10" Pilings

Specifications may vary based on installation conditions and optional upgrades.

GALLERY

Related Lift Systems

Depending on your dock configuration, you may also want to explore other Neptune lift systems.

Elevator Boat Lifts

Elevator Yacht Lifts

8-Post Yacht Lifts

Beamless Boat Lifts

Each lift system is engineered for different vessel sizes and waterfront environments.

Boat Types That Use 4-Post Lifts

Neptune 4-Post lift systems are commonly used for a wide range of vessels.

Typical boats lifted with 4-Post systems include:

  • Center Console Boats

  • Offshore Fishing Boats

  • Dual Console Boats

  • Bay Boats

  • Sport Boats

  • Small Motor Yachts

Depending on lift capacity, these vessels typically range from 20 to 40 feet in length.

Selecting the proper lift capacity requires evaluating the vessel’s fully loaded weight, hull design, and beam width.

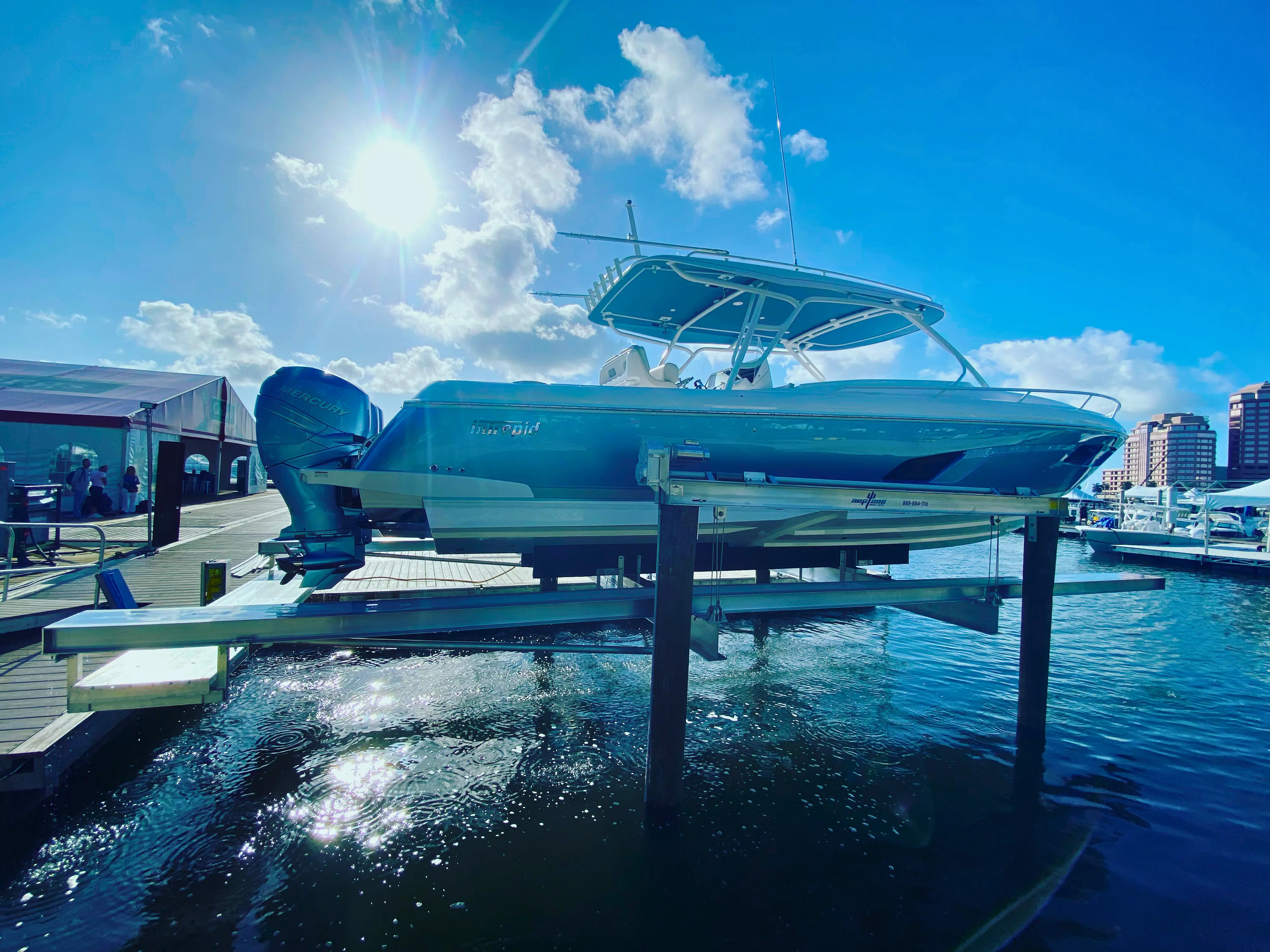

Neptune 4-Post Lift (13).jpg

Protect Your Boat with a Lift Engineered for Saltwater

Neptune lift specialists can help determine the correct lift configuration for your vessel and dock installation.

Request a Custom Lift Consultation
Download Product Brochure

A 4-post boat lift is a piling-mounted cradle lift that raises a vessel vertically using cables and a drive motor. It is one of the most common lift types for waterfront docks.

Neptune 4-Post lifts are engineered for vessels up to approximately 30,000 pounds, depending on configuration and structural requirements.

Yes. When constructed with marine-grade aluminum and corrosion-resistant components, 4-post lifts perform well in coastal and saltwater environments.

The required spacing depends on the vessel’s beam width and lift configuration. Neptune specialists evaluate dock layout and vessel dimensions to determine proper installation.

Lift speed depends on the drive system selected. Neptune offers standard direct drive as well as high-speed G3 and G6 configurations.
