8-Post Yacht Lifts Engineered for Large Vessels

Maximum Strength for Large Offshore Boats and Yachts

Neptune 8-Post Yacht Lifts are designed for large vessels that demand exceptional structural support and lifting stability. Built for offshore boats, large center consoles, and luxury yachts, these systems provide superior load distribution and lifting performance.

Unlike traditional four-post lifts, the eight-post configuration distributes vessel weight across additional pilings, increasing structural stability for larger boats and heavier loads.

Request a Yacht Lift Consultation
Download Yacht Lift Specifications

When an 8-Post Yacht Lift Is the Ideal Solution

An 8-post lift is typically recommended when vessel size, beam width, or total weight exceed the optimal capacity of traditional four-post lift systems. As vessel size increases, lift systems must safely support significantly greater weight while maintaining structural stability. An eight-post configuration distributes vessel weight across additional pilings, reducing load stress on individual components while improving overall lifting stability.

This design provides greater structural integrity when lifting large offshore boats and yachts.

8-Post lifts are ideal for:

  • Large center consoles with triple or quad outboards

  • Sport fishing yachts

  • Offshore cruising boats

  • Heavy vessels with significant fuel capacity

  • Boats with wide beam dimensions

For many modern offshore boats, additional structural support is necessary to safely distribute weight and maintain lift stability.

Custom Engineered Lift Systems

Large vessel lift systems require careful engineering to ensure proper weight distribution and structural integrity. Each Neptune yacht lift is designed based on the specific vessel and installation environment.

Engineering considerations include:

  • Vessel weight and beam

  • Dock configuration and piling layout

  • Water depth and tidal conditions

  • Hull design and weight distribution

  • Motor configuration

This engineered approach ensures long-term durability and reliable lift performance.

The Neptune Lift Engineering Process

Large vessel lift systems require proper engineering and installation planning.

The Neptune process typically includes:

1. Vessel Evaluation: Determine vessel weight, beam, and configuration.

2. Dock & Waterfront Assessment: Evaluate piling layout, seawall structure, and dock space.

3. Lift Engineering: Determine lift capacity, drive system, and structural configuration.

4. Dealer Coordination: Authorized Neptune dealers manage installation and commissioning.

Built for Saltwater Durability

South Florida marine environments expose lift systems to constant salt spray, humidity, and tidal movement. Neptune yacht lifts are built using corrosion-resistant materials designed to perform in these conditions.

Key components include:

  • Structural lift beams mounted to seawall supports

  • Cable-driven lifting motors

  • Adjustable bunks configured for the vessel hull

  • Aluminum cradle assembly

  • Corrosion-resistant hardware and drive components

High-Speed Direct Drive Options

Neptune elevator lifts are available with multiple direct drive configurations designed to optimize lifting speed and performance.

Drive options include:

Direct Drive

G3 High-Speed Drive

G6 SuperFast Drive

Dependable lifting performance for everyday use.

Faster lift speeds for improved convenience.

Maximum performance for demanding lifting applications.

Direct drive systems eliminate belts and chains, delivering smoother operation and reduced maintenance over time.

Technical Specifications

Direct Drive 8-Post Specifications

Size Top Carrier Dimensions Lifter Beam Dimensions Horse Power Volt and Amperage Cable Size Winders/Drive Shaft Vertical Travel Bunks Pile Size
30,000 lb. (w/remote) 6" Channel 12" x 16' I-Beam (4) 1 HP Stainless Steel Motors 240V/30A 3/8" Stainless Steel Mil-Spec Hardened Grooved Winders 12' 3" x 12" x 20' (8) 10" Driven Pilings
40,000 lb. (w/remote) Twin I-Beam Double I-Beam 16' – 20' Neptune® Patented 1HP Stainless Steel Magnetic Brake Motors 240V/30A 3/8" Stainless Steel Mil-Spec Hardened Solid Grooved Winders 12' 5" x 12" x 20' (8) 10" – 12" Driven Pilings
50,000 lb. (w/remote) Twin I-Beam Double I-Beam 16' – 20' Neptune® Patented 2HP Stainless Steel Magnetic Brake Motors 240V/60A 7/16" Stainless Steel Mil-Spec Hardened Solid Grooved Winders 12' 5" x 12" x 20' (8) 10" – 12" Driven Pilings
60,000 lb. (w/remote) Twin I-Beam Double I-Beam 12" 18' – 20' Neptune® Patented 2HP Stainless Steel Magnetic Brake Motors 240V/60A 7/16" Stainless Steel Mil-Spec Hardened Solid Grooved Winders 12' 5" x 12" x 20' (8) 12" Driven Pilings
70,000 lb. (w/remote) Twin I-Beam Triple I-Beam 12" Double Lifters 18' – 21' Neptune® Patented 2HP Stainless Steel Magnetic Brake Motors 240V/60A 7/16" Stainless Steel Mil-Spec Hardened Solid Grooved Winders 12' 5" x 12" x 20' (8) 12" Driven Pilings
80,000 lb (w/remote) Twin I-Beam Triple I-Beam 12" Double Lifters 20' – 21' Neptune® Patented 2HP Stainless Steel Magnetic Brake Motors 240V/60A 7/16" Stainless Steel Mil-Spec Hardened Solid Grooved Winders 12' 8" x 12" x 20' (8) 12" Concrete Driven Pilings
120,000 lb (w/remote) Twin I-Beam Double I-Beam 18" Quad Lifters 20' – 22' Neptune® Patented 2HP Stainless Steel Magnetic Brake Motors 240V/80A 7/16" Stainless Steel Mil-Spec Hardened Solid Grooved Winders 12' 8" x 12" x 20' (8) 12" Concrete Driven Pilings
180,000 lb (w/remote) Twin I-Beam Double I-Beam 18" Quad Lifters 20' – 22' Neptune® Patented 2HP Stainless Steel Magnetic Brake Motors 240V/80A 7/16" Stainless Steel Mil-Spec Hardened Solid Grooved Winders 12' 8" x 12" x 20' (8) 12" Concrete Driven Pilings

Specifications may vary based on installation conditions and optional upgrades.

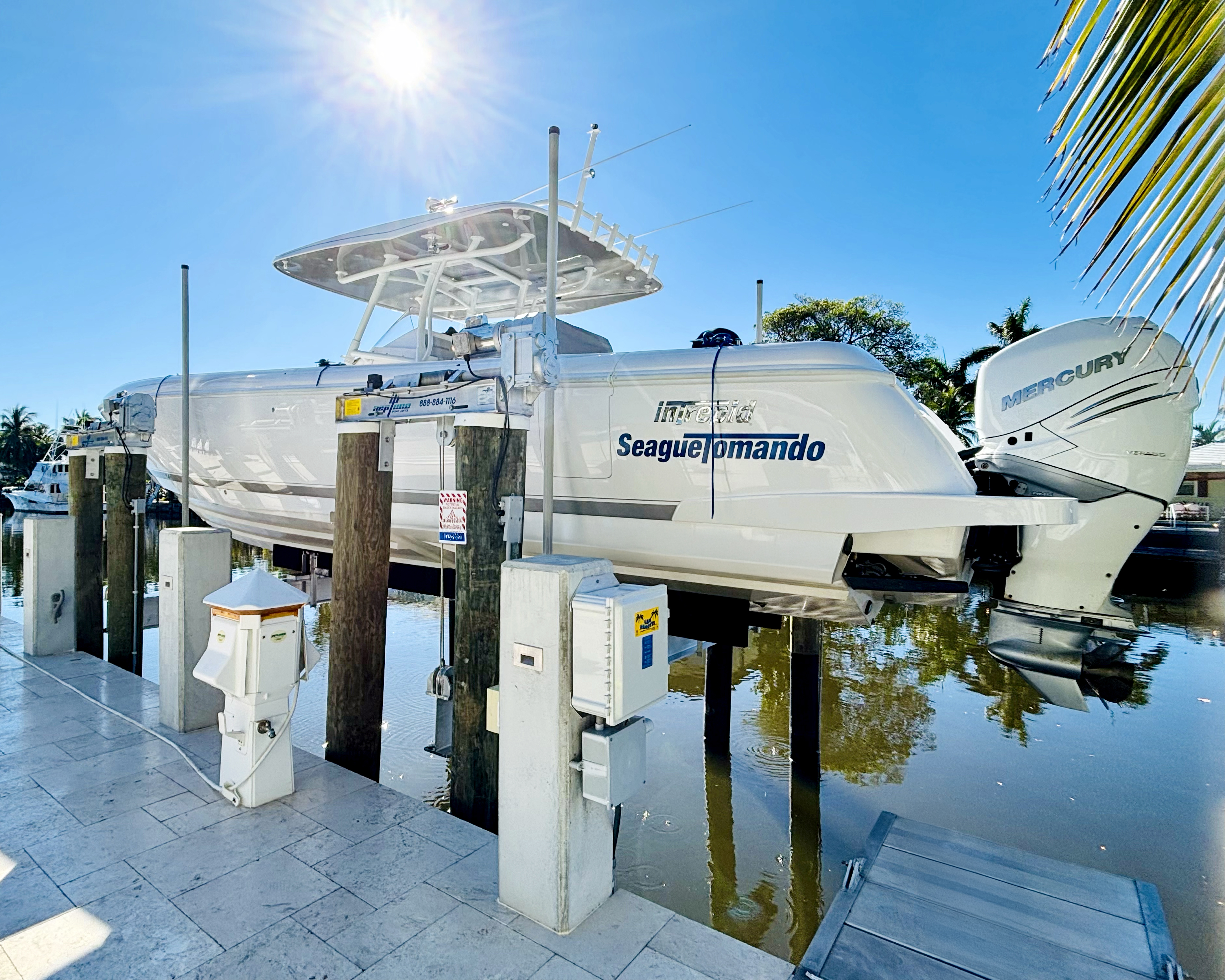

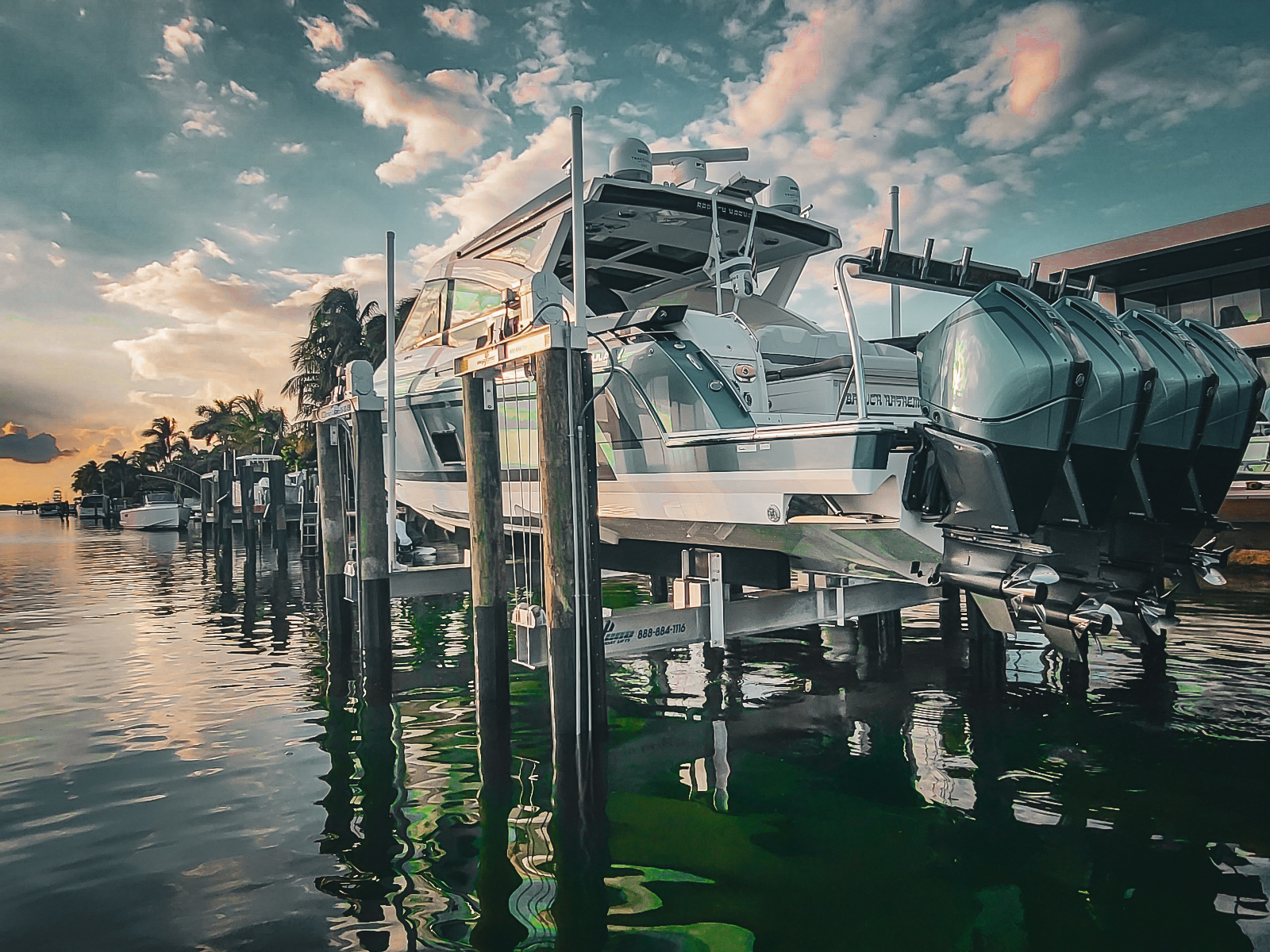

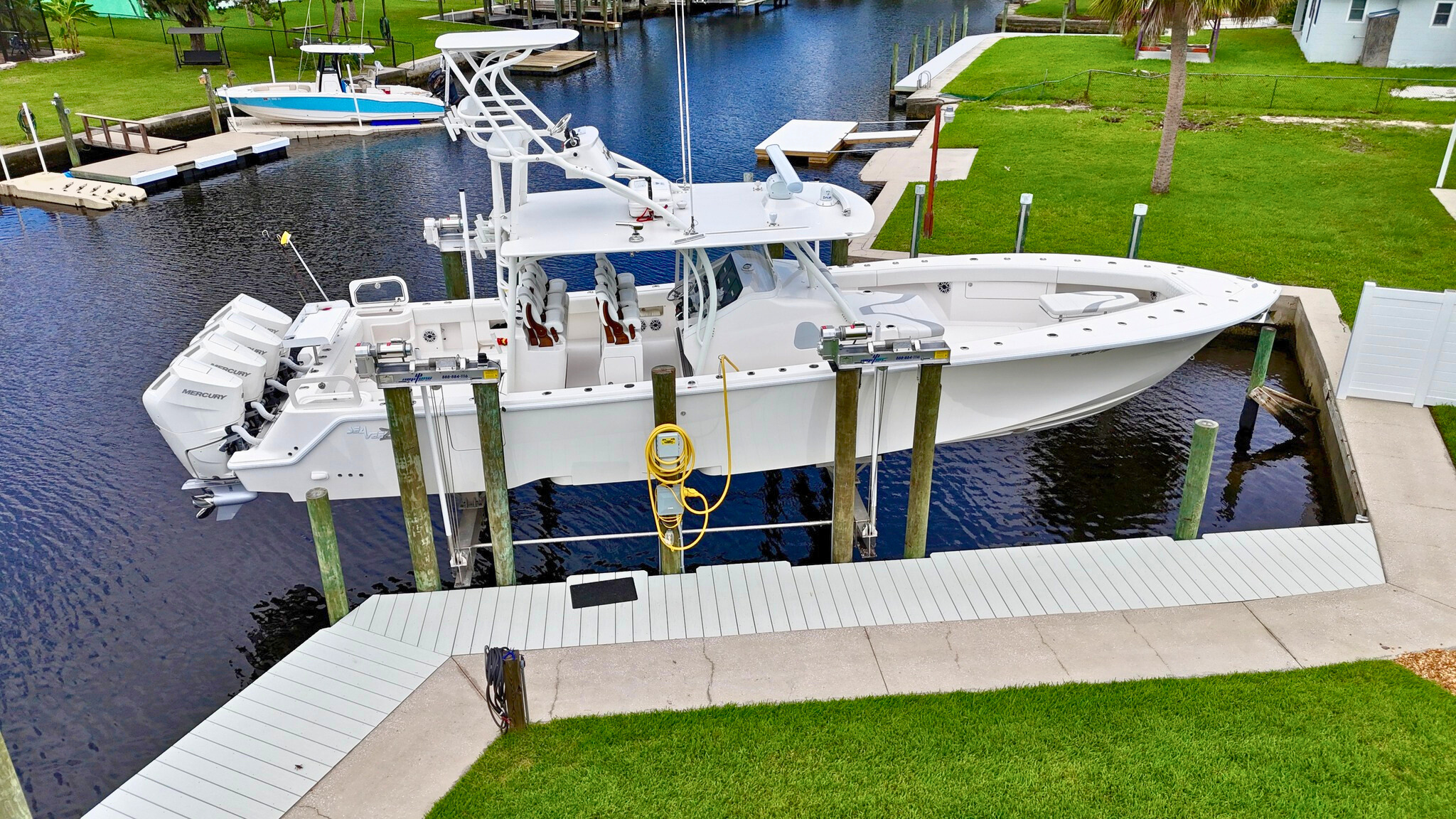

Neptune 8-Post Yacht Lift Installations

Product Resources

Download technical information and planning resources for Neptune lift systems.

Available downloads include:

8-Post Lift Specification Sheet  - Direct Drive

8-Post Lift Specification Sheet  - G6

Neptune Lift Planning Guide

Installation Overview Guide

Warranty Information

Related Lift Systems

Depending on your dock configuration, you may also want to explore other Neptune lift systems.

Elevator Yacht Lifts

Each lift system is engineered for different vessel sizes and waterfront environments.

When an 8-Post Lift is the Right Choice

8-post yacht lifts are typically recommended when vessels exceed the safe working range of traditional four-post lifts.

These systems are commonly used for:

  • Sport fishing yachts

  • Large center console boats with triple or quad outboards

  • Offshore cruising boats

  • Luxury motor yachts

  • Heavily equipped fishing vessels

Many large offshore boats today weigh significantly more due to fuel capacity, equipment, and engine configurations. An 8-post lift provides the structural capacity required for these modern vessels.

FAQ SECTION

What is an 8-post boat lift?

An 8-post boat lift distributes vessel weight across eight pilings instead of four, allowing the lift to safely support larger vessels.

How much weight can an 8-post yacht lift handle?

Neptune 8-post lifts can support vessels ranging from 30,000 lbs to over 120,000 lbs, depending on engineering configuration.

When should I use an 8-post lift instead of a 4-post lift?

An 8-post lift is recommended when vessel weight or beam exceeds the optimal capacity of a four-post lift.

Are 8-post yacht lifts designed for saltwater?

Yes. Neptune yacht lifts are built specifically for coastal environments using corrosion-resistant marine materials.

Can an 8-post lift support large center console boats?

Yes. Many modern center console boats with triple or quad outboards are supported using 8-post lift systems.
